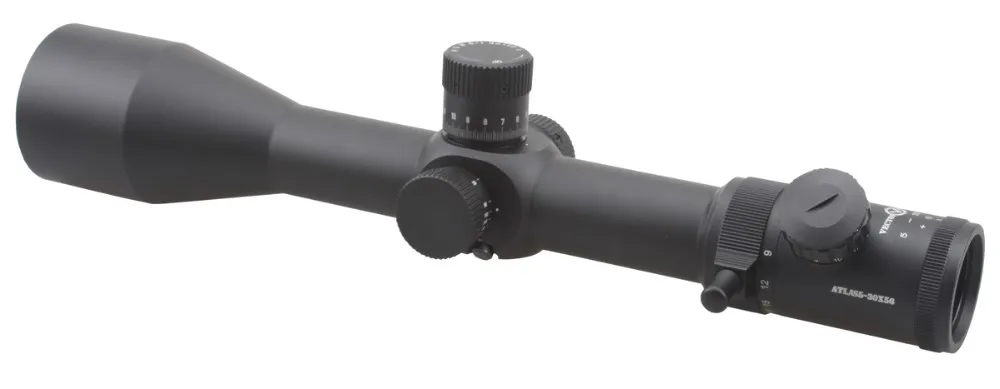

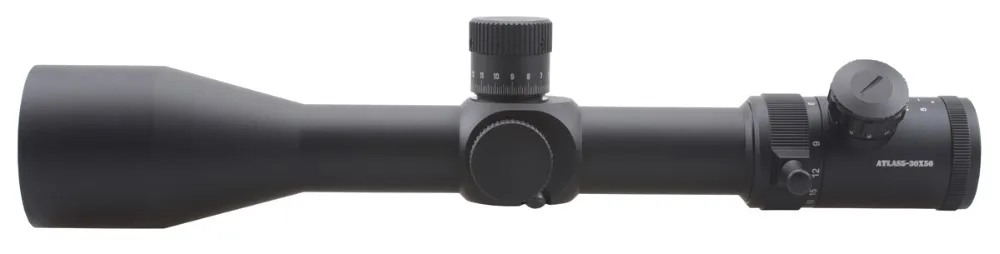

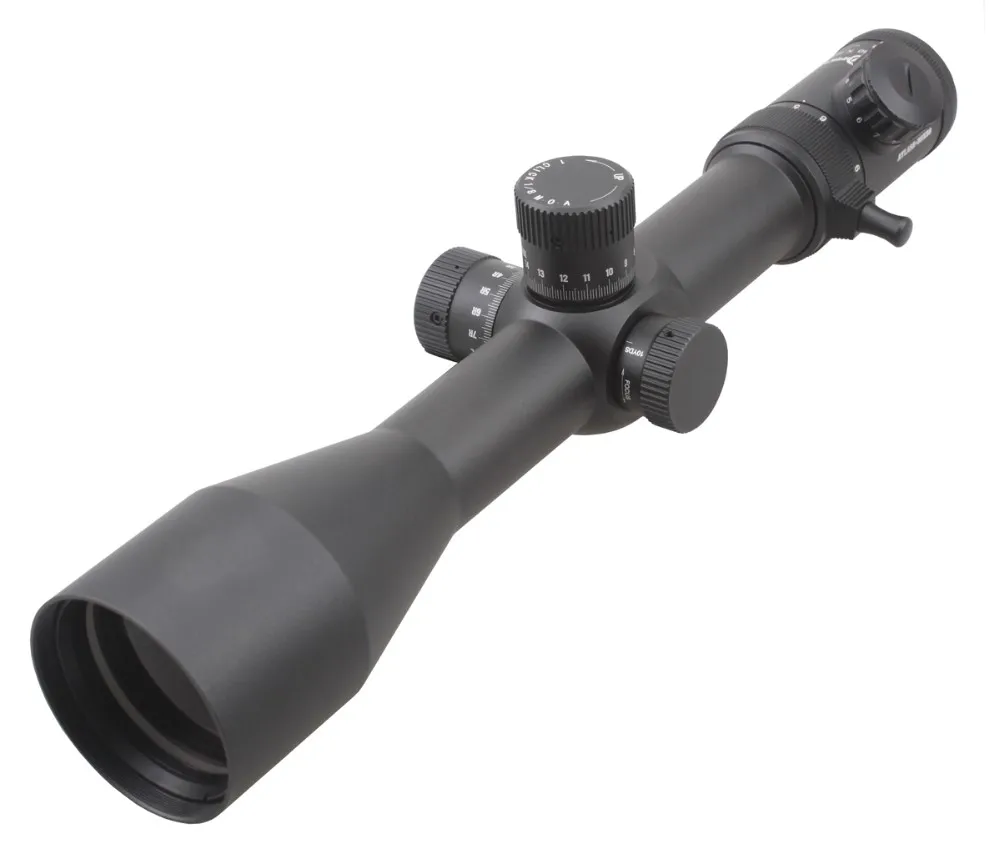

Vector Optics Atlas 5-30x56 Rifle Scope 35mm Riflescope Heavy Duty VHL Etched Reticle Turret LocK Side Focus Fit 12.7mm 50 BMG

FOB Reference Price:Get Latest Price
30 Set/Sets Riflescopes (Min. Order)
Supply Ability:
300 Set/Sets per Month Rifle scope
Port:
Rifle scope from Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Vector Optics Rifle scope
Model Number:
SCOL-04 Atlas Rifle scope
Type:
Rifle Scope
Maximum Output Power:
0
type:
Rifle scope
Packaging & Delivery
Packaging Details
triangle retail box for Rifle scopes
Delivery Time
Rifle Scope 7 days
Product Description

Etched VHL-1 1 Reticle, 1/8 MOA Adjustment, Turret Lock, 35mm Monotube, Diamond Clear Image,
12.7mm 50BMG Tested, Tri-rails Picatinny Mount Ring, Flip-up Caps, Center Dot Illuminated, Long Eye Relief,

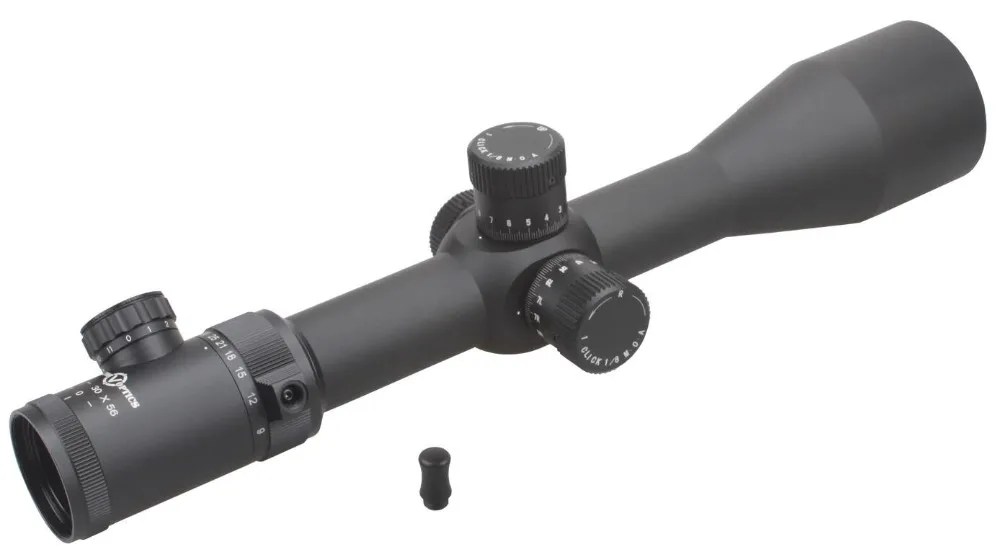

Removable Power Throw Lever, 6x Power Ranger, Side Focus Starts from 10 Yards,

Detailed Spec
Model
SCOL-04 Atlas
Magnification
5-30x
Objective Lens Dia

56mm

Ocular Lens Dia
41mm (1.6 inch)
Ocular Length
68mm (2.7 inch)
Exit Pupil
11.2-1.9 mm
Optics Coating
Fully-multi coat diamond clear
Field of View
23.6-3.8 feet@100yards
Eye Relief
101-89 mm (4.0-3.5 Inch)
Length
375mm (14.8 inch)
Weight
1000g (35.3 ounce)
Tube Dia.
35mm Monotube

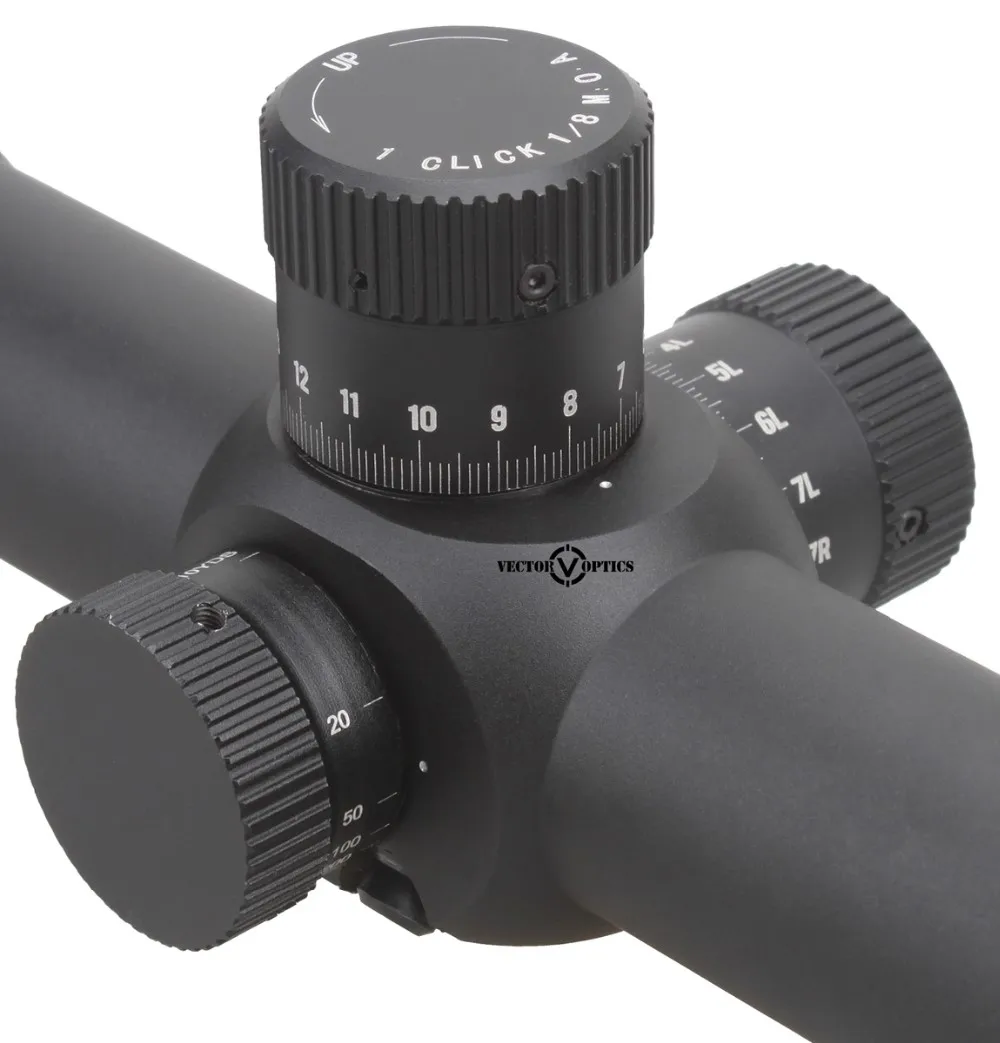

Click Value
1/8 MOA
Elevation Range
 50MOA
Windage Range
50MOA
Side Focus
10 yds to infinite       (20, 50, 100, 200, 700 and infinite)
Parallax Setting
100 yards

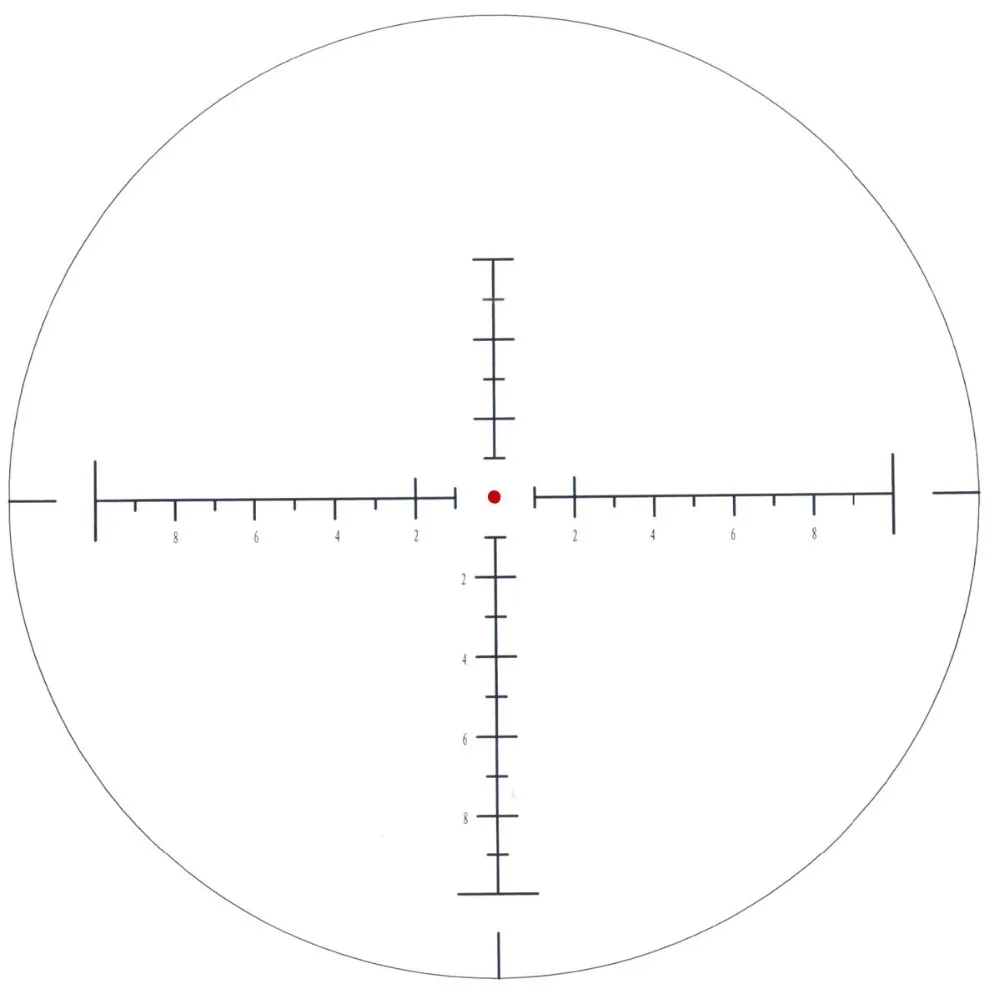

Reticle
Etched glass VHL Reticle
Illumination
11 levels red, center dot light
Battery
CR2032

Distance between objective lens part and middle turret: 57mm (2.3 inch)
Length of middle turret part: 47mm (1.9 inch)
Distance between middle turret part to power ring: 60mm (2.3 inch)
Shock tested to 1000g, water proof
Fully nitrogen purged to eliminate any fogging of the lenses internally
High quality 6061 T6 aircraft grade aluminum
Diopter compensation from fast-focus eyepiece (+2 to -2)

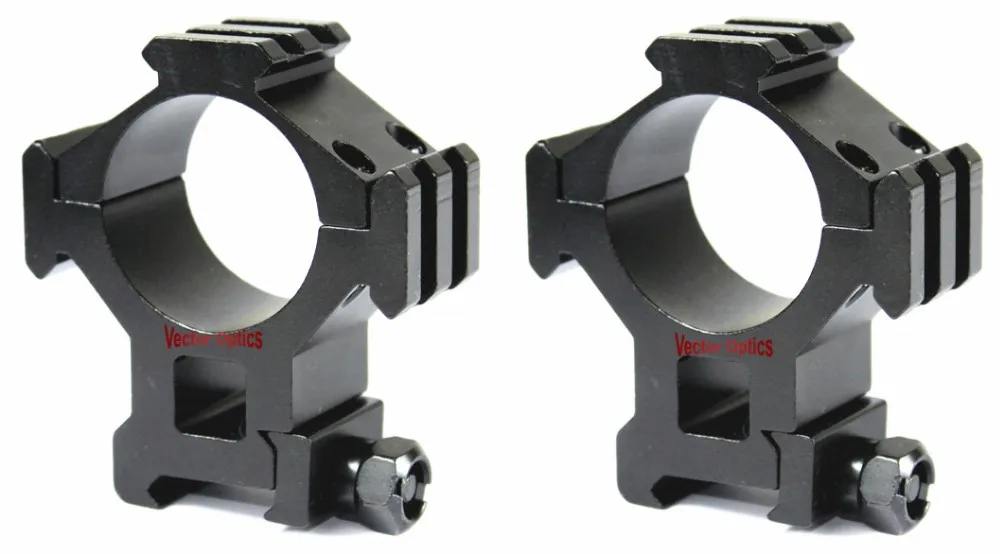

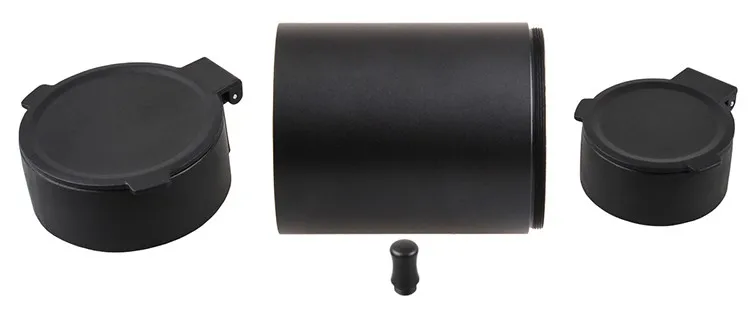

Including items: 35mm tri-rails picatinny scope ring, deluxe cleaning cloth, flip-up caps and retail package etc.
