Vector Optics 6-25x56 Counterpunch First Focal Plane Tactical High Quality Low Profile Rifle Scope

FOB Reference Price:Get Latest Price
10 Piece/Pieces (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 9
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 91% - 100%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Vector Optics
Model Number:
SCFF-03B
Type:
Rifle Scope
Maximum Output Power:
0
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
retail box
Port
Shanghai
Lead Time :
Shipped in 5 days after payment

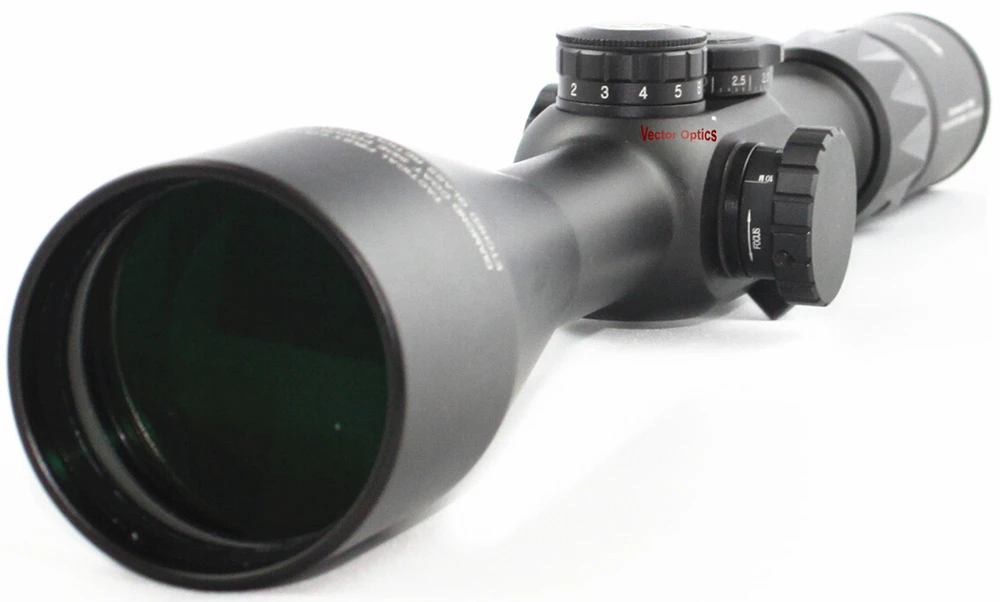

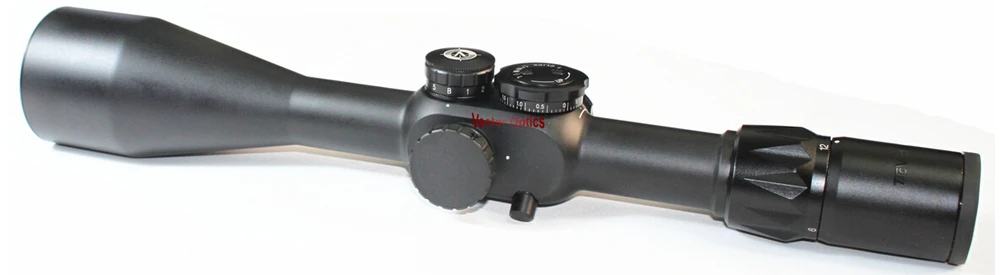

Vector Optics Counterpunch 6-25x56 First (Front) Focal Plane Riflescope (SCFF-03B)







FFP Brief Introduction: Most scopes have the reticle fitted in the second focal plane (near the eyepiece). While, presently it has always been the practice to fit the reticle in the first focal plane (the reticle increases its size when change the magnification from low to high). Each system has its advantages.







The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP mil suppliers now.





















Tested on 50 Caliber, Long Eye Relief, 3'' Sunshade, First Focal Plane Etched Glass MP Reticle with Germany Tech, Advantage in Tactical and Law Enforcement. 30mm Monotube, Scope Caps, Min Focus at 10 Yard, Sunshade, Green and Red Illumination and Side Focus







  • Model: SCFF-03B Counterpunch
  • Magnification: 6-25x
  • Objective Lens Dia: 56mm
  • Ocular Lens Dia: 34mm
  • Ocular Length: 52mm
  • Exit Pupil: 9.2-2.4 mm
  • Length: 395mm (15.5 inch, without sunshade)
  • Weight (net): 850G (30.0 ounce)
  • Eye Relief: 107-84 mm (4.21-3.34 Inch), long eye relief
  • Field of View (ft@100yds): 18.6-4.9
  • Field of View (M@ 100M): 5.7-1.5
  • Field of View (@100yds):3.55-0.93°
  • Num of Lens: 12
  • Optics Coating: Fully-Multi Coated to eliminate glare and maximize light transmission
  • Parallax: ±0.125
  • Side Focus Range: 10 Yards to unlimited
  • Reticle: Front Focal Plan Etched Glass MP Reticle
  • Elevation Range: ±35 MOA
  • Windage Range:  ±35 MOA
  • 5 levels green and red brightness illumination system
  • 30mm Hammer-forged Monotube
  • Shock proof (1000g), water proof (at 300mm and 54 degree) and fog proof (Nitrogen Purged)
  • High quality aluminum alloy in durable black matte finish
  • Feature 1/10 M.I.L direct super low profile windage and elevation turrets adjustments
  • Fast focus eyepiece at olucar lens adjustment (diopter compensation)
  • Free Fittings involved: 30mm tactical weaver mount (as picture shown), Scope Caps, snshade and fine package
