Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Vector Optics Rifle Scope
  • Model Number: SCFF-04 first focal plane Rifle Scope
  • Type: Rifle Scope
  • Product Name: Optic Rifle Scope
  • Magnification: 10-40x
  • Objective Lens Dia: 56mm
  • Exit Pupil: 1.4-5.6 mm
  • Length: 450mm (17.7 inch, without sunshade)
  • Weight (net): 1.035KG (36.5 ounce)
  • Eye Relief: 81-102 mm (3.2-4.0'') , long eye relief
  • Field of View (feet @100yds): 0.48-1.90°
  • Num of Lens: 11
  • Reticle: Front Focal Plane Etched Mil-Dot Glass

Packaging & Delivery

Packaging Details: Retail Gift Box
Delivery Detail: 3-30 days






FFP Brief Introduction: Most scopes have the reticle fitted in the second focal plane (near the eyepiece). While, presently it has always been the practice to fit the reticle in the first focal plane (the reticle increases its size when change the magnification from low to high).Each system has its advantages.

The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP military suppliers now.

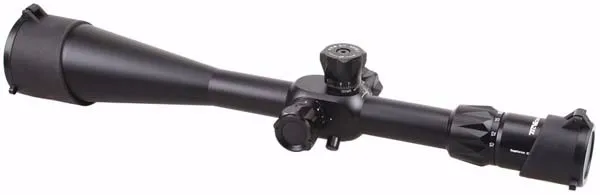

Tactical First Focal Plane Optics Rifle Scope with Germany Tech Mil-Dot Reticle





1.Long Eye Relief
2.First Focal Plane Etched Glass Mil-Dot Reticle with Germany Tech

3.Advantage in Military and Law Enforcement

4.30mm Monotube

5.See-Thru Scope Cover

6.Min Focus at 10 Yard

6.Sunshade

7.Green and Red Illumination and Side Focus





Original Manufacturer Supply Magnification Option

  • 1-4x24mm
  • 2-12x32mm
  • 3-12x50mm
  • 4.5-14x44mm
  • 4-16x50mm
  • 6-25x56mm
  • 8-32x56mm
  • 10-40x56mm
  • future option: 3-18x50mm , 1-8x26mm , 5-30x56mm



100% Trade Aussrance Security!!!





Product Description
Magnification 10-40x
Objective Lens Dia 56mm
Ocular Lens Dia 34mm
Ocular Length 56mm
Exit Pupil 1.4-5.6 mm
Length 450mm (17.7 inch, without sunshade)
Weight (net) 1.035KG (36.5 ounce)
Eye Relief 81-102 mm (3.2-4.0'') , long eye relief
Field of View 2.5-10 (ft@100yds)
Field of View 0.8-3.1 (M@ 100M)
Field of View 0.48-1.90° (@100yds)
Num of Lens 11
Parallax ±0.125
Side Focus Range 12 Yard to unlimited
Reticle Front Focal Plan Etched Mil-Dot Glass
Evaluation Range ±15 MOA
Windage Range: ±15 MOA
Battery CR2032


  • Optics Coating: Fully-Multi Coated to eliminate glare and maximize light transmission
  • 5 levels green and red brightness side illumination system
  • 30mm Hammer-forged Monotube
  • Shock proof (1000g), water proof (at 300mm and 54 degree) and fog proof (Nitrogen Purged)
  • High-durability aluminum alloy in black matt and beautiful complement
  • Feature 1/8 M.O.A direct high finger windage and elevation turrets adjustments with audible clicks for greater precision
  • Fast focus eyepiece at olucar lens adjustment
  • Free Fittings involved: 30mm Weaver Mount (default) or dovetail mount, K9 Glass Flip-up Caps, 3 inch Sunshade and Fine Package





Vector Optics Counterpunch 6-25x56 First (Front) Focal Plane Riflescope


  • Model: SCFF-03C Counterpunch
  • Magnification: 6-25x
  • Objective Lens Dia: 56mm
  • Ocular Lens Dia: 34mm
  • Ocular Length: 52mm
  • Exit Pupil: 2.4-9.2 mm
  • Length: 395mm (15.55 inch, without sunshade)
  • Weight (net): 917g (32.35 ounce)
  • Eye Relief: 84-107 mm (3.34-4.21 Inch), long eye relief
  • Field of View (ft@100yds): 4.9-18.6
  • Field of View (M@ 100M): 1.5-5.7
  • Field of View (@100yds):0.93-3.55°
  • Num of Lens: 12
  • Optics Coating: Fully-Multi Coated to eliminate glare and maximize light transmission
  • Parallax: ±0.125
  • Side Focus Range: 10 Yard to unlimited
  • Reticle: Front Focal Plan Etched MP Glass Reticle
  • Elevation Range: 21 MIL
  • Windage Range:  21 MIL
  • 5 levels green and red brightness illumination system
  • 30mm Hammer-forged Monotube
  • Shock proof (1000g), water proof (at 300mm and 54 degree) and fog proof (Nitrogen Purged)
  • High quality aluminum alloy in durable black matte finish
  • Feature 1/10 MIL (1cm or called 0.1 MARD) direct high finger diamond style windage and elevation turrets adjustments
  • Fast focus eyepiece at ocular lens adjustment (diopter compensation)
  • Free fittings involved: 30mm tactical one piece triple rails picatinny mount (as picture shown), lens cap, honeycomb sunshade and fine package





Packaging & Shipping

Individual box packing,shipping depends

Our Services

Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.

All scopes and items have three years warranty.

Company Information

Company Policy: Strive for the Customer Satisfaction

We have rich experience upon the international order all over the world. We can deliver the order to APO Box. We will combine the shipping cost for multi items purchase.



FAQ

TAC Vector Optics (VO)

Q: Is VO a professional organization?

A: Yes, we have been engaged in this field for more than 10 years.

Q: How do I pay for my order?

A: We accept T/T or PayPal/Western Union etc.

Q: How will my order be shipped?

A: We use express / post air mail /air cargo/sea freight,depends on quantity and area

Q: When can I expect to receive my order?

A: Normally, 7-14days after payment and order comfired

Q: How will my order be packaged?

A: Individual white box with free fittings,good for your wholesale or retail sales

Q: What is your quality control?

A: Quality is our culture. We are 100% detailed check before shipping.

Q: Do VO products have a warranty?

A: Yes, we offer 5 years limited warranty to our products

Thanks again for your attention. We sincerely hope you will enjoy our products.



Why Choose us?

♦ 10-year rich business experience on this field,offers you trustworthy products and service

♦ ♦ 99%  positive feedbacks, deeds rather than words

♦ High export standard technology and quality system,growing number of reaserach cost on our product and service,complete one-stop product system

♦ 5 years warranty and excellent after-sale service, free you from worries

♦ 100% trade assurance security



It is us who takes good care of your each order carefully,

we are the best service team!



Vector Optics First Focal Plane Hunting Tactical Sniper Gun Rifle Scope China Best Professional for .50 BMG Caliber

Contact us to discuss more details please, thanks!
