Vector Optics Templar Long Eye Relief 1-4x24 First Focal Plane Riflescope with Focal Plan Etched R9 Glass Reticle

FOB Reference Price:Get Latest Price
US $77.2-85.8 / Pieces | 50 Piece/Pieces 1-4x24 First Focal Plane Riflescope (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 9
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 91% - 100%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Vector Optics 1-4x24 First Focal Plane Riflescope
Model Number:
SCFF-01 1-4x24 First Focal Plane Riflescope
Type:
Rifle Scope
Maximum Output Power:
0
Product Name:
1-4x24 First Focal Plane Riflescope
Magnification:
1-4x
Objective Lens Dia:
24mm
Exit Pupil:
6.0-16.5 mm
Length:
256mm (10.0 inch)
Weight (net):
625g (22.0 ounce)
Eye Relief:
89-125 mm (4.9-3.5 Inch), long eye relief
Field of View (feet @100yds):
95-24
Num of Lens:
11
Reticle:
Focal Plan Etched R9 Glass Reticle
Supply Ability
Supply Ability:
16800 Set/Sets per Month 1-4x24 First Focal Plane Riflescope
Packaging & Delivery
Packaging Details
1-4x24 First Focal Plane Riflescope Individual Gift Box
Port
Shanghai Port
Lead Time :
1-4x24 First Focal Plane Riflescope 5-7days after payment

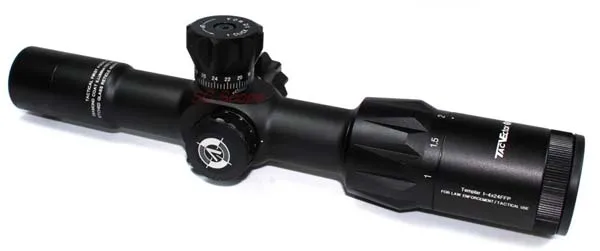

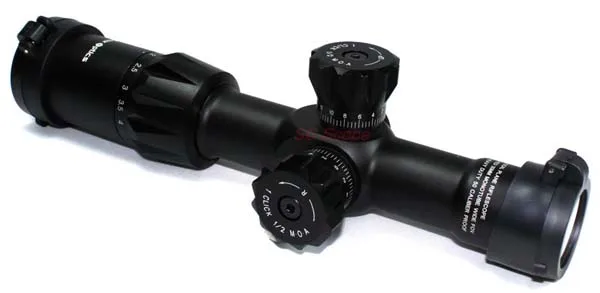

Vector Optics Templar Long Eye Relief 1-4x24 First Focal Plane Riflescope with Focal Plan Etched R9 Glass Reticle



1.Long Eye Relief

2.First Focal Plane Etched Glass Reticle

3.Advantage in Military and Law Enforcement. 30mm Monotube

4.Top K9 glass Flip-up Caps, Sunshade

5.Side Green and Red Illumination



Product Description
Magnification 1-4x
Objective Lens Dia 24mm
Ocular Lens Dia 34mm
Ocular Length 56mm
Exit Pupil 6.0-16.5 mm
Length256mm (10.0 inch)
Weight (net)625g (22.0 ounce)
Eye Relief89-125 mm (4.9-3.5 Inch), long eye relief
Field of View95-24  (ft@100yds)
Field of View31.7-8  (M@ 100M)
Field of View18-4.6°  (@100yds)
Num of Lens 11
Parallax ±0.125
Optics CoatingFully-Multi Coated to eliminate glare and maximize light transmission

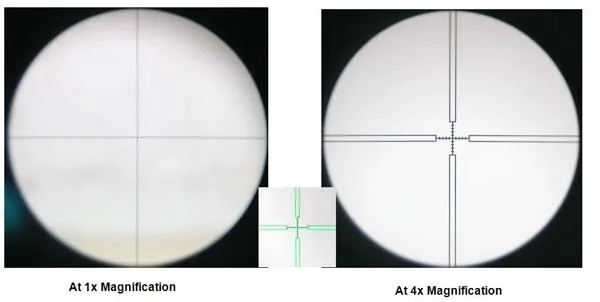

Reticle Focal Plan Etched R9 Glass Reticle OR Front Focal Plan Etched Tactical Glass Reticle (default as following picture shown)
Evaluation Range ±35 MOA
Windage Range: ±35 MOA
Illumination

5 levels green and red brightness illumination system



  • 0mm Hammer-forged Monotube
  • Shock proof (1000g), Water Proof (at 300mm and 54 degree) and Fog Proof (Nitrogen Purged)
  • High quality aluminum alloy in durable black matte finish
  • Feature 1/2 M.O.A direct high finger windage and elevation turrets adjustments with audible clicks for greater precision.
  • Fast focus eyepiece at olucar lens adjustment (diopter compensation)
  • Free Fitting involved: 30mm Weaver Mount (default), K9 Glass Flip-up Caps and Fine Package.
  • Vector Optics and made in China under our strict quality control.



Packaging & Shipping

Individual box packing,shipping depends



Our Services

Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.



All scopes and items have three years warranty.

Company Information

Company Policy: Strive for the Customer Satisfaction



We have rich experience upon the international order all over the world. We can deliver the order to APO Box. We will combine the shipping cost for multi items purchase.



FAQ

Finally, your feedback and suggestion are very important for us.



Thanks again for your attention. We sincerely hope you will enjoy our products.



Why Choose us?

♦ 10-year rich business experience on this field,offers you trustworthy products and service

♦ ♦ 99%  positive feedbacks, deeds rather than words

♦ High export standard technology and quality system,growing number of reaserach cost on our product and         service,complete one-stop product system

♦ There years warranty and excellent after-sale service, free you from worries

♦ No matter you are new or experienced, your satisfaction is our best desire and traget.live up to your trust and our resposibilities



Vector Optics Templar Long Eye Relief 1-4x24 First Focal Plane Riflescope with Focal Plan Etched R9 Glass Reticle
